MB200

MB200

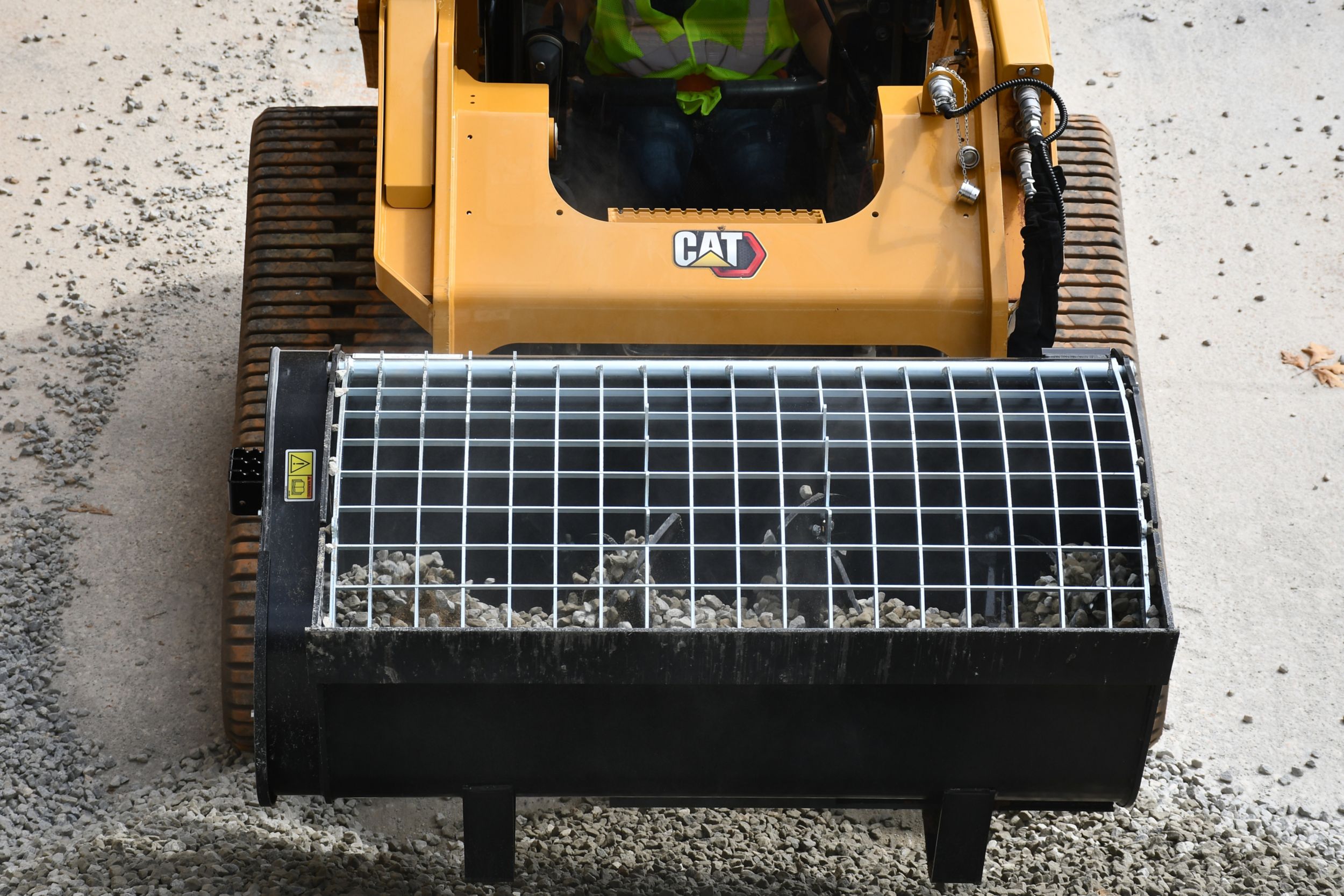

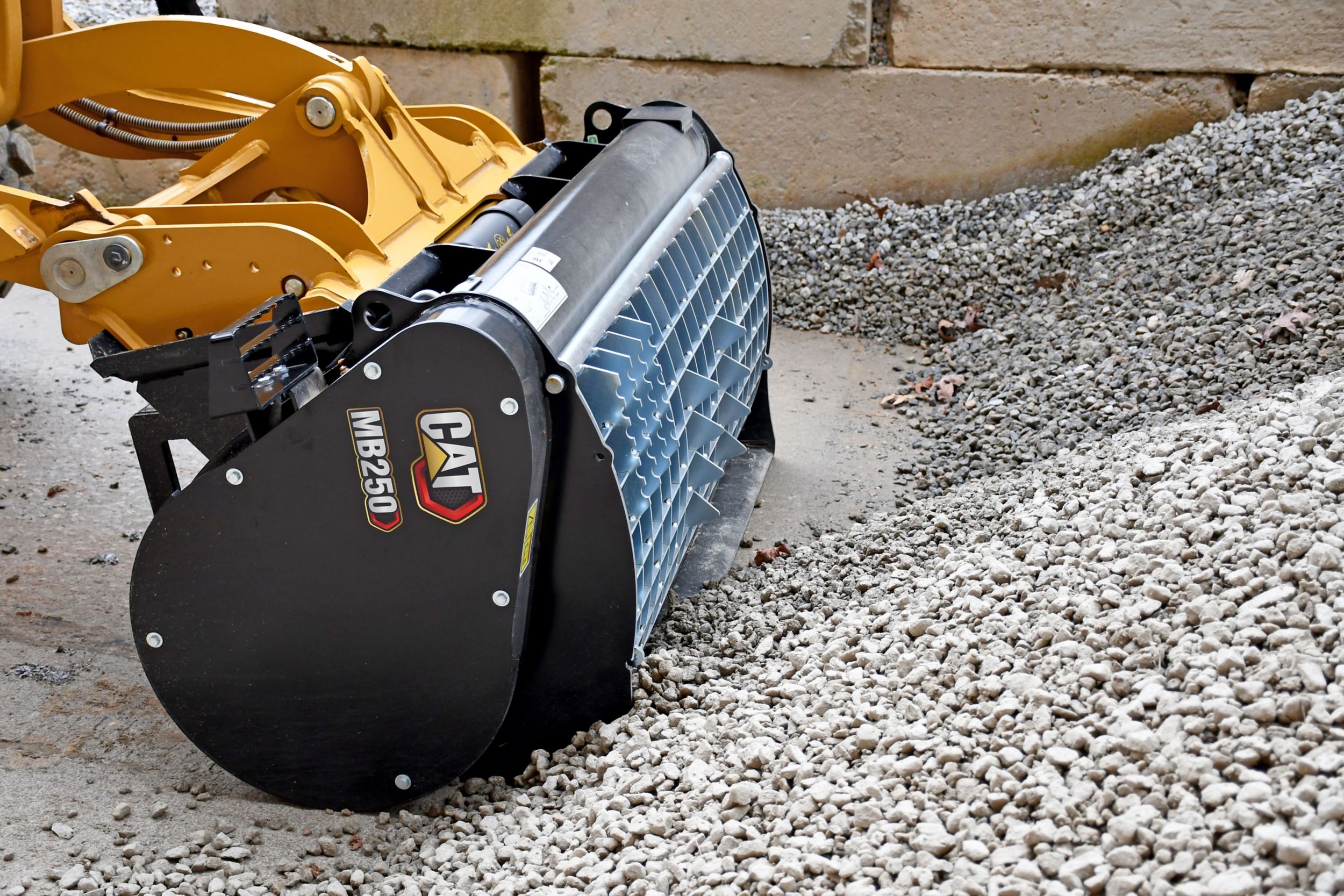

Cat® Mixing Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for material mixing in a variety of applications. Utilizing a chain driven auger equipped with replaceable paddles the Cat Mixing Buckets ensure complete and repeatable mixing. Work can be completed in difficult to access areas, improving productivity and saving on transportation costs. Available with rigid and flexible chutes, the mixing buckets provide different methods to distribute material around job sites. The hydraulically controlled chute door opens a path for material to exit the bucket and is operated from the cab eliminating the need to exit the cab to open the bucket. The Cat Mixing Buckets are excellent for sidewalks, driveways, finish work, fence posts, footings and floors of small buildings.

Capacity 0.26 yd³ 0.2 m³
Width 54.6 in 1386 mm
Required Hydraulics Standard Flow Standard Flow

Technicial Specifications

Capacity 0.26 yd³ 0.2 m³
Width 54.6 in 1386 mm
Required Hydraulics Standard Flow Standard Flow
Auger Speed Range 10-30 rpm 10-30 rpm
Drive Method Chain Chain
Height 28.8 in 731 mm
Length 27.3 in 694 mm
Optimal Hydraulic Flow 60-70 lpm (16-18 gpm) 60-70 lpm (16-18 gpm)
Optimal Hydraulic Pressure 140-200 bar (2031-2901 psi) 140-200 bar (2031-2901 psi)
Weight 639 lb 290 kg
Auger Diameter 16 in 406 mm
Number of Auger Paddles 12 12
Interface Type Skid Steer Coupler Skid Steer Coupler
Overall Width 63.1 in 1602 mm

Advantages and Features

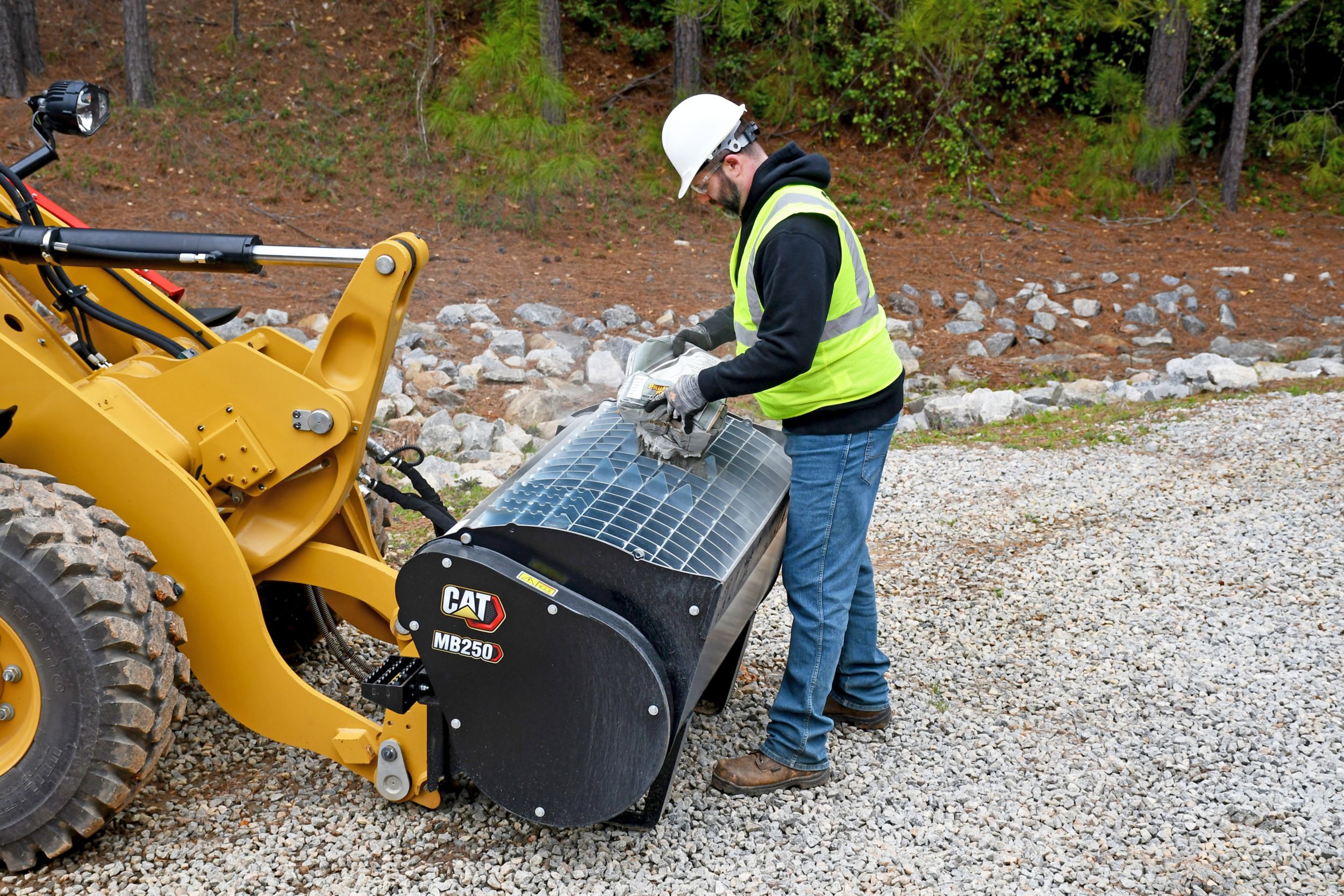

Easy Material Addition

Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.

Bucket Cutting Edge

Cutting edge allows for bucket to be used to drive into piles of raw materials.

Reinforced Steel Bucket Cavity

Reinforced steel is used for bucket cavity ensuring long life and reduced wear.

Bolt-On Replaceable Auger Paddles

Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.

Remotely Operated Chute Door

Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.

Bolt-On Serrated Step

Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and mantenance guides required for proper operation of the work tool.
