With a legendary Cat® motor grader pedigree, the 150/150 AWD models offer peak performance, efficiency, long life and operator comfort. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the 150 is one high productivity machine.

Net Power Range (Tier 3) 183 hp 136 kW
Operating Weight - Typically Equipped 41868 lb 18991 kg
Blade Width 12 ft 3.7 m

Technicial Specifications

Engine
Net Power Range (Tier 3) 183 hp 136 kW
Engine Model Cat® C7 / AWD C9 Cat® C7 / AWD C9
Emissions Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Base Power (1st Gear) - Net - Metric 186 hp 136 kW
VHP Plus Range - Net 136-174 kW (183-233 hp) 136-174 kW (183-233 hp)
VHP Plus Range - Net - Metric 136-174 kW (186-237 hp) 136-174 kW (186-237 hp)
Displacement 439 in³ 7.2 l
Bore 4.3 in 110 mm
Stroke 5 in 127 mm
Torque Rise - VHP Plus 39% 39%
Maximum Torque - VHP Plus 855 lb/ft 1159 N·m
Speed at Rated Power 2,000 rpm 2,000 rpm
Number of Cylinders 6 6
Derating Altitude 10000 ft 3048 m
Standard - Fan Speed - Maximum 1,450 rpm 1,450 rpm
Standard - Fan Speed - Minimum 600 rpm 600 rpm
Standard - Ambient Capability 109 °F 43 °C
High Ambient - Fan Speed - Maximum 1,650 rpm 1,650 rpm
High Ambient - Fan Speed - Minimum 600 rpm 600 rpm
High - Ambient Capability 122 °F 50 °C
Note (1) Maximum torque (VHP Plus) measured at 1,000 rpm. Maximum torque (VHP Plus) measured at 1,000 rpm.
Note (2) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3) Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator.
Note (4) Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp) Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp)
Note (5) No engine derating required up to 3048 m (10,000 ft). No engine derating required up to 3048 m (10,000 ft).
Weights
Operating Weight - Typically Equipped 41868 lb 18991 kg
Gross Vehicle Weight - Base - Total 36554 lb 16581 kg
Gross Vehicle Weight - Base - Front Axle 9561 lb 4337 kg
Gross Vehicle Weight - Base - Rear Axle 26993 lb 12244 kg
Gross Vehicle Weight - Maximum - Total 51893 lb 23538 kg
Gross Vehicle Weight - Maximum - Front Axle 16606 lb 7532 kg
Gross Vehicle Weight - Maximum - Rear Axle 35287 lb 16006 kg
Gross Vehicle Weight - Typically Equipped 41868 lb 18991 kg
Gross Vehicle Weight - Typically Equipped - Total 41868 lb 18991 kg
Gross Vehicle Weight - Typically Equipped - Front Axle 11716 lb 5314 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle 30152 lb 13677 kg
Note Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator. Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator.
Moldboard
Blade Width 12 ft 3.7 m
Moldboard - Width 12 ft 3.7 m
Moldboard - Height 24 in 610 mm
Moldboard - Thickness 0.87 in 22 mm
Arc Radius 16.3 in 413 mm
Throat Clearance 6.5 in 166 mm
Cutting Edge Width 6 in 152 mm
Cutting Edge Thickness 0.6 in 16 mm
End Bit - Width 6 in 152 mm
End Bit - Thickness 0.6 in 16 mm
Blade Pull - Base GVW 24294 lb 11020 kg
Blade Pull - Maximum GVW 31758 lb 14405 kg
Down Pressure - Base GVW 16410 lb 7444 kg
Down Pressure - Maximum GVW 28503 lb 12929 kg
Note Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW). Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW).
Net Power - VHP Plus
Gear - Forward 1st 183 hp 136 kW
Gear - Forward 2nd 188 hp 140 kW
Gear - Forward 3rd 203 hp 151 kW
Gear - Forward 4th 208 hp 155 kW
Gear - Forward 5th 213 hp 159 kW
Gear - Forward 6th 218 hp 163 kW
Gear - Forward 7th 233 hp 174 kW
Gear - Forward 8th 233 hp 174 kW
Gear - Reverse 1st 183 hp 136 kW
Gear - Reverse 2nd 188 hp 140 kW
Gear - Reverse 3rd-6th 203 hp 151 kW
Power Train
Forward/Reverse Gears 8 Forward/6 Reverse 8 Forward/6 Reverse
Transmission Direct drive, power shift, countershaft Direct drive, power shift, countershaft
Brakes - Service Multiple oil disc Multiple oil disc
Brakes - Service - Surface Area 3565 in² 23000 cm²
Brakes - Parking Multiple oil disc Multiple oil disc
Brakes - Secondary Dual circuit control system Dual circuit control system
Hydraulic System
Circuit Type Electro-hydraulic load sensing, closed center Electro-hydraulic load sensing, closed center
Pump Type Variable piston Variable piston
Pump Output 55.7 gal/min 210 l/min
Maximum System Pressure 3500 psi 24150 kPa
Standby Pressure 450 psi 3100 kPa
Note Pump output measured at 2,150 rpm. Pump output measured at 2,150 rpm.
Operating Specifications
Top Speed - Forward 29 mile/h 46.6 km/h
Top Speed - Reverse 22.9 mile/h 36.8 km/h
Turning Radius - Outside Front Tires 24.93 ft 7.6 m
Steering Range - Left/Right 47.5 degrees 47.5 degrees
Articulation Angle - Left/Right 20 degrees 20 degrees
Forward - 1st 2.5 mile/h 4 km/h
Forward - 2nd 3.4 mile/h 5.5 km/h
Forward - 3rd 5 mile/h 8 km/h
Forward - 4th 6.8 mile/h 11 km/h
Forward - 5th 10.6 mile/h 17.1 km/h
Forward - 6th 14.5 mile/h 23.3 km/h
Forward - 7th 19.9 mile/h 32 km/h
Forward - 8th 29 mile/h 46.6 km/h
Reverse - 1st 2 mile/h 3.2 km/h
Reverse - 2nd 3.7 mile/h 6 km/h
Reverse - 3rd 5.4 mile/h 8.7 km/h
Reverse - 4th 8.4 mile/h 13.5 km/h
Reverse - 5th 15.7 mile/h 25.3 km/h
Reverse - 6th 22.9 mile/h 36.8 km/h
Service Refill
Fuel Capacity 110 gal (US) 416 l
Cooling System 10.6 gal (US) 40 l
Hydraulic System - Tank 16.9 gal (US) 64 l
Engine Oil 6.6 gal (US) 25 l
Transmission - Differential - Final Drives 16.9 gal (US) 64 l
Tandem Housing - Each 16.9 gal (US) 64 l
Front Wheel Spindle Bearing Housing 0.13 gal (US) 0.5 l
Circle Drive Housing 1.8 gal (US) 7 l
Frame
Circle - Diameter 60.2 in 1530 mm
Circle - Blade Beam Thickness 1.6 in 40 mm
Drawbar - Height 6 in 152 mm
Drawbar - Width 3 in 76.2 mm
Front Frame Structure - Height 12 in 305 mm
Front Frame Structure - Width 12 in 305 mm
Front Frame Structure - Thickness 0.6 in 16 mm
Front Axle - Height to Center 23 in 571 mm
Front Axle - Wheel Lean - Left/Right 18 degrees 18 degrees
Front Axle - Total Oscillation per Side 32 degrees 32 degrees
Tandems
Height 19.9 in 506 mm
Width 7.9 in 201 mm
Sidewall Thickness - Inner 0.6 in 16 mm
Sidewall Thickness - Outer 0.7 in 18 mm
Drive Chain Pitch 2 in 50.8 mm
Wheel Axle Spacing 60 in 1523 mm
Tandem Oscillation - Front Up 15 degrees 15 degrees
Tandem Oscillation - Front Down 25 degrees 25 degrees
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Blade Range
Circle Centershift - Right 28.7 in 728 mm
Circle Centershift - Left 27.4 in 695 mm
Moldboard Sideshift - Right 26 in 660 mm
Moldboard Sideshift - Left 20.1 in 510 mm
Maximum Blade Position Angle 90 degrees 90 degrees
Blade Tip Range - Forward 40 degrees 40 degrees
Blade Tip Range - Backward 5 degrees 5 degrees
Maximum Shoulder Reach Outside of Tires - Right 77.9 in 1978 mm
Maximum Shoulder Reach Outside of Tires - Left 70.5 in 1790 mm
Maximum Lift Above Ground 18.9 in 480 mm
Maximum Depth of Cut 28.1 in 715 mm
Ripper
Ripping Depth - Maximum 16.8 in 428 mm
Ripper Shank Holders 5 5
Ripper Shank Holder Spacing 21 in 533 mm
Penetration Force 20540 lb 9317 kg
Pry-Out Force 26259 lb 11911 kg
Machine Length Increase, Beam Raised 36.2 in 919 mm
Scarifier
Front, V-Type, 5 or 11 Tooth - Working Width 47.4 in 1205 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum 18.4 in 467 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders 5, 11 5, 11
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing 4.6 in 116 mm
Mid, V-Type - Working Width 46.6 in 1184 mm
Mid, V-Type - Scarifying Depth, Maximum 11.5 in 292 mm
Mid, V-Type - Scarifier Shank Holders 11 11
Mid, V-Type - Scarifier Shank Holder Spacing 4.6 in 116 mm
Rear - Working Width 91 in 2300 mm
Rear - Scarifying Depth, Maximum 10.5 in 266 mm
Rear - Scarifier Shank Holders 9 9
Rear - Scarifier Shank Holder Spacing 10.5 in 267 mm
Standards
ROPS/FOPS ISO 3471:2008, ISO 3449:2005 Level II ISO 3471:2008, ISO 3449:2005 Level II
Steering ISO 5010:2007 ISO 5010:2007
Brakes ISO 3450:1996 ISO 3450:1996
Sound ISO 6394:2008, ISO 6395:2008 ISO 6394:2008, ISO 6395:2008
Note (1) The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A). The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A).
Dimensions
Height - Top of Cab 130 in 3308 mm
Height - Top of Cab Product Link 133 in 3378 mm
Height - Front Axle Center 23.5 in 596 mm
Length - Between Tandem Axles 60 in 1523 mm
Length - Front Axle to Moldboard 100 in 2552 mm
Length - Front Axle to Mid Tandem 241 in 6123 mm
Length - Front Tire to Rear of Machine 344 in 8754 mm
Length - Push Plate to Ripper 399 in 10136 mm
Length - Push Plate to Ripper Retracted 386 in 9818 mm
Ground Clearance - Rear Axle 13.3 in 339 mm
Height - Top of Cylinders 119 in 3040 mm
Height - Exhaust Stack 121 in 3076 mm
Width - Tire Center Lines 84 in 2140 mm
Width - Outside Rear Tires 98 in 2511 mm
Width - Outside Front Tires 98 in 2511 mm

Advantages and Features

DESIGNED FOR OPERATORS

  • Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear vision camera further enhances lines of sight all around the machine.
  • Experience the most spacious, comfortable cab in the industry.
  • Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue for better productivity.
  • Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
  • Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock.
  • Joystick lean angle mirrors the steer tires' turning angle.
  • A brake tensioning system holds the joystick in position until the operator moves it.
  • Steering control automatically reduces sensitivity at higher ground speeds for predictable control.
  • Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
  • Control switches are in easy reach.
  • Standard Cat Comfort Series suspension seat is fully adjustable.
  • Control pods are electronically positioned allowing each operator to set the ideal operating position.
  • Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
  • High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
  • An optional deluxe radio with CD features MP3 and Bluetooth® technology.
  • Easy-to-read, high-visibility gauges and warning lamps keep you aware of critical system information.
  • Cat Messenger offers real-time machine performance and diagnostic data to help get the most from your machine.
  • Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
  • Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.

BUILT TO PERFORM

  • Cat C7 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity. For All-Wheel-Drive, the Cat C9 engine is available fo extra power.
  • Superior torque and lugging capability provide the power to pull through sudden, short-term increases in loads.
  • Engine technology lowers combustion chamber temperatures and optimizes fuel combustion to generate more work output for each unit of fuel.
  • Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
  • Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
  • The Motor Graders to give you efficiency and longevity in your most demanding applications.
  • Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
  • Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
  • Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
  • Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
  • Wide operating gear range for maximum productivity.
  • Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
  • Sealed spindle keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
  • Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
  • Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
  • Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
  • Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
  • Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
  • Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

HEAVY DUTY CONSTRUCTION

  • Caterpillar designs motor grader frame and drawbar components to give you performance and durability.

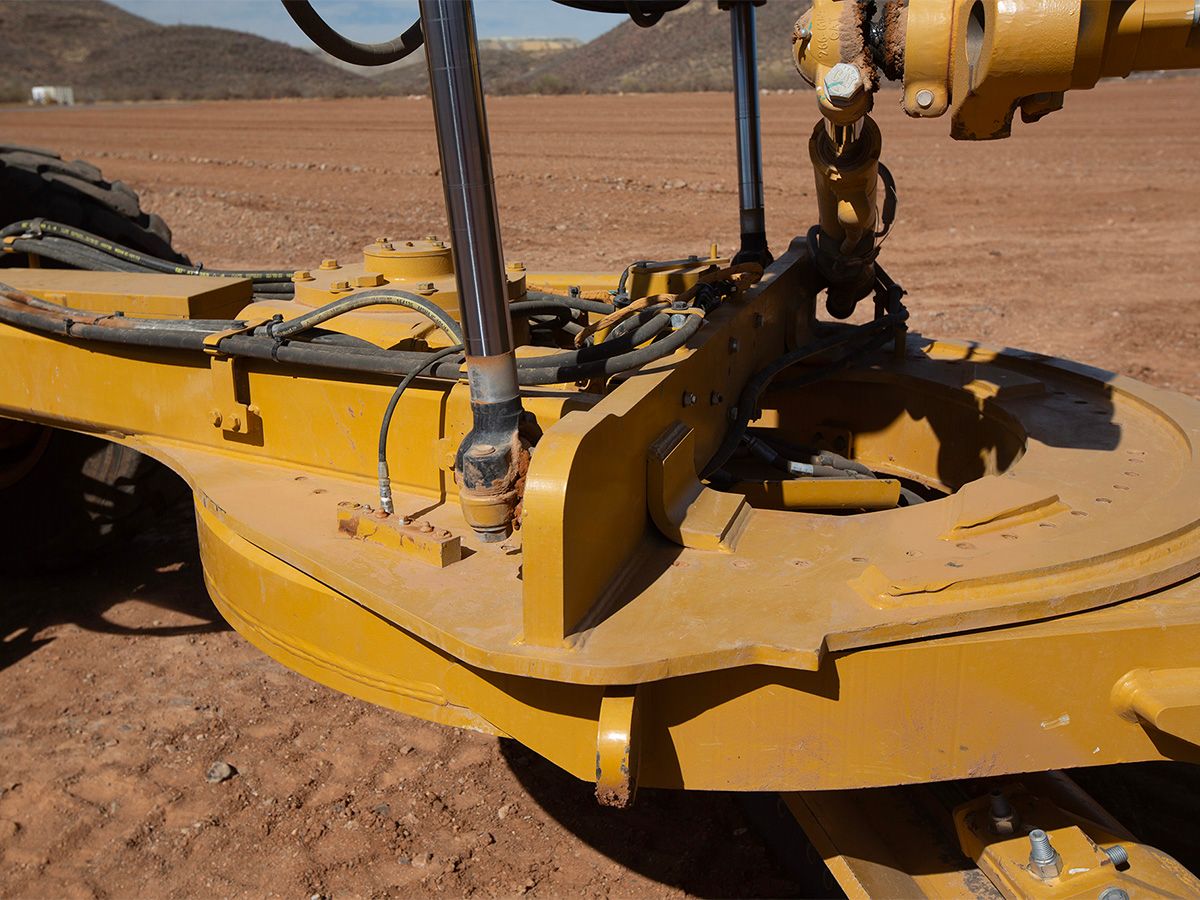

  • The one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
  • Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
  • The drawbar, circle and moldboard make it easy for you to keep the components tight.
  • Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
  • Durable nylon composite wear inserts maximize circle torque and component life.
  • Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
  • Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
  • An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
  • Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
  • Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.

RELIABILITY YOU CAN COUNT ON

  • Proven load-sensing system and advanced electro-hydraulics give you superior implement control and responsive hydraulic performance. Continuously matching hydraulic flow/pressure to power demands generates less heat and reduces fuel consumption.
  • Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder. Count on consistent, predictable implement response.
  • Balanced hydraulic flow is proportioned ensuring implements operate simultaneously without slowing the engine or implement reaction time.
  • Blade Float allows the blade to move freely under its own weight.
  • Float both cylinders allowing the blade to follow the ground contours
  • Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
  • Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, which reduces heat build-up and extends component life.
  • Cat XT™ hose allows high pressures for maximum power and reduced downtime.

TECHNOLOGY THAT PUSHES PROFITS

  • Cat Technology makes smart use of technology and services to improve job site efficiency. Using the data from technology equipped machines, get more information and insight into equipment and operations
  • Cat technologies offer improvements in these key areas:
  • Equipment Management - increase uptime and reduce operating costs.
  • Productivity - monitor production and manage job site efficiency.
  • Safety - enhance job site awareness to keep your people and equipment safe.
  • Featured Cat technologies include -
  1. Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
  2. Cat Product Link Elite is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
  3. Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
  4. Cat GRADE with Cross Slope is an optional, factory installed system that helps improve grading efficiency and more easily maintain accurate cross slopes. The system automatically controls one side of the blade, reducing manual operator inputs by as much as 50 percent. Experienced operators can maintain peak efficiency levels throughout more of the work day, while less experienced operators can be more productive faster. The system is job-ready from day one, and scalable for the future with AccuGrade™ upgrade kits that provide additional 2D and/or 3D control.
  • Optional Stable Blade system detects bounce through an accelerometer and reduces engine rpm at 15 percent intervals to stabilize machine bounce. Once the motor grader has stabilized, Stable Blade will increase engine speed back to the initial set level. The throttle will not be reduced below 1,200 rpm.
  • Optional Auto Articulation is active in gears 1-4F and 1-3R and allows the motor grader to automatically articulate to match the steering angle of the front tires. The system is tuned to allow full articulation at full steering angle and is modulated for maximum performance.
  • Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
  • Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
  • Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
  • Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

SAFELY HOME EVERY DAY

  • Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
  • Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
  • Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
  • Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
  • Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
  • Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
  • Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
  • Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
  • Safety Features -
  1. Optional rearview camera with in-cab monitor
  2. Grouped, ground level service points
  3. Laminated front window glass
  4. Optional LED Lighting
  5. Ground-level electrical disconnect switch
  6. Ground-level engine shutoff switch
  7. Anti-glare paint eases night operation
  8. Optional front and rear fenders

TOP-TIER SERVICE AND SUPPORT

  • Cat motor graders are designed to help you increase uptime and reduce costs.
  • Grouped service points and extended service intervals save maintenance time.
  • Automatic Lubrication System maintains proper grease on working surfaces, increasing component life and purging contaminants from pins and bushings to help prevent damage.
  • Fast-Fill allows customers to refuel in less than four minutes enhancing availability.
  • Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.

Standard Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • POWER TRAIN
    • Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger
    • Air-to-air after cooler (ATAAC)
    • Belt, serpentine, automatic tensioner
    • Brakes, oil disc, four-wheel, hydraulic
    • Demand fan, hydraulic
    • Differential Lock/Unlock, Automatic
    • Drain, engine oil, ecology
    • Electronic over speed protection
    • Engine Cat C7 diesel with automatic engine derate and idle control. Note: Emissions equivalent to Tier 3 and Stage IIIA.
    • Engine Idle Shutdown (EIS)
    • Fuel tank, 416 L (110 gal), ground level access and sediment drain
    • Fuel-water separator
    • Muffler, underhood
    • Parking brake - multi-disc, sealed, oil-cooled
    • Priming pump, fuel
    • Rear axle, modular
    • Sediment drain, fuel tank
    • Tandem drive
    • Transmission, 8F/6R, power shift, direct drive
    • Variable Horsepower Plus (VHP Plus)
  • ELECTRICAL
    • Alarm, back up
    • Alternator, 80 ampere, sealed
    • Batteries, maintenance free, heavy duty, 1,125 CCA
    • Breaker panel, ground accessible
    • Cab harness and electrical hydraulic valves
    • Electrical system, 24V
    • Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets
    • Lights, roof-mounted roading, reversing, LED stop and tail
    • Product Link Ready
    • Starter, electric
  • OPERATOR ENVIRONMENT
    • Accelerator
    • Air conditioning with heater
    • Arm and wrist rest, electronically adjustable
    • Articulation, automatic Return-to-Center
    • Cat Messenger operator information system
    • Centershift pin indicator
    • Coat hook
    • Cup holder
    • Display, digital speed and gear
    • Doors, left and right side with wiper
    • Gauge, machine level
    • Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp
    • Hour meter, digital
    • Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and steering
    • Joystick, adjustable armrests
    • Joystick gear selection
    • Joystick hydraulic power steering
    • Ladders, cab, left and right side
    • Lights, night time cab
    • Mirror, inside rearview, wide angle
    • Power port, 12V
    • Radio Ready, Entertainment
    • ROPS cab, sound suppressed
    • Seat, cloth-covered, comfort suspension
    • Seat belt, retractable 76 mm (3 in)
    • Storage area for cooler/lunchbox
    • Throttle control, electronic
    • Windows, laminated glass: - fixed front with intermittent wiper - side and rear (3)
  • FLUIDS
    • Antifreeze
    • Extended Life Coolant to -35° C (-30° F)
  • TIRES, RIMS AND WHEELS
    • Partial allowance for tires on 254 × 607 mm (10 × 24 in) multi-piece rims is included in the base machine price and weight
  • OTHER STANDARD EQUIPMENT
    • Anti-glare paint
    • Bumper, rear, integrated with hitch
    • CD ROM Parts Book
    • Clutch, circle drive slip
    • Cutting edges: - 152 × 16 mm (6 × 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts
    • Doors (3), engine compartment, locking
    • Drawbar - 6 shoes, replaceable wear strips
    • Electrical hydraulic valves, hydraulic lines for base 8 functions
    • Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts
    • Fluid check, ground level
    • Frame, articulated, with safety lock
    • Ground level engine shutdown
    • Ground level fueling
    • Hammer (emergency exit)
    • Horn, electric
    • Hydraulic lines for base functions
    • Lockout, hydraulic implement (for roading and servicing)
    • Moldboard - 3658 × 610 × 22 mm (12 ft × 24 in × 7/8 in)
    • Mounting, cab roof accessories
    • Pump, hydraulic, high capacity, 98 cm³ (6 in³)
    • Radiator, cleanout access
    • Secondary steering
    • Serviceability, left-hand side
    • S·O·S℠ ports: engine, hydraulic, transmission, coolant, fuel
    • Tandem walkway/guards
    • Tool box
    • Tow hitch

Optional Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • ELECTRICAL
    • Alternator, 150 ampere - 2 kg (5 lb)
    • Batteries: extreme duty, 1,400 CCA - 14 kg (30 lb)
    • Converter, communication (CB) - 5 kg (11 lb)
    • Lights: Headlights, high - 5 kg (11 lb)
    • Lights: Headlights, low - 5 kg (11 lb)
    • Lights: Working lights, basic - 9 kg (20 lb)
    • Lights: Working lights, plus - 10 kg (22 lb)
    • Lights: Warning: beacon or strobe - 2 kg (5 lb)
    • Lights: Mounting for warning light - 5 kg (11 lb)
  • GUARDS
    • Articulation guard - 13 kg (30 lb)
    • Axle hose guard - 7 kg (15 lb)
    • Fenders, front - 56 kg (123 lb)
    • Fenders, rear - 156 kg (344 lb)
    • Sound guard (bottom) - 110 kg (243 lb)
    • Transmission guard - 141 kg (311 lb)
  • OPERATOR ENVIRONMENT
    • Deluxe CD radio with MP3 and Bluetooth technology
    • Fan, defroster, rear window - 2 kg (4 lb)
    • Mirrors, outside: heated 24V - 15 kg (33 lb)
    • Mirrors, outside: mounted - 15 kg (33 lb)
    • Precleaner, HVAC - 5 kg (10 lb)
    • Radio ready, AM/FM - 9 kg (20 lb)
    • Seat, air suspension, cloth - 2 kg (5 lb)
    • Shade, sun - 2 kg (5 lb)
    • Wiper/washer, rear - 2 kg (4 lb)
  • POWER TRAIN
    • Precleaner, snow/debris - 2 kg (4.4 lb)
    • Transmission, autoshift - 2 kg (5 lb)
  • OTHER ATTACHMENTS
    • AccuGrade ARO - 39 kg (85 lb)
    • Accumulators, blade lift - 77 kg (170 lb)
    • Camera, rearview - 9 kg (20 lb)
    • Cat Grade Control Cross Slope - 75 kg (165 lb)
    • Cat Product Link 321 (Satellite) - 13 kg (29 lb)
    • Cat Product Link 522 (Cellular) - 13 kg (29 lb)
    • Compressor/tank, air - 27 kg (50 lb)
    • Heater, engine coolant: 120V - 1 kg (3 lb)
    • Heater, engine coolant: 240V - 1 kg (3 lb)
    • Hydraulic arrangements with one or more additional hydraulic valves are available for ripper, dozer, snow wings, front lift group, mid-mount scarifier
    • Security system - 5 kg (11 lb)
    • Snow wing mounting, frame ready - 111 kg (245 lb)
    • Sound suppression - 15 kg (33 lb)
    • Starting aid, ether - 0.5 kg (1 lb)
  • WORK TOOLS/GROUND ENGAGING TOOLS
    • Blade extension, left hand, 610 mm (2 ft) - 113 kg (249 lb)
    • Endbits, overlay - 24 kg (52 lb)
    • Front lift group, mounting - 5 kg (11 lb)
    • Front lift group - 680 kg (1,500 lb)
    • Mid-Mount Scarifier, Package - 942 kg (2,077 lb)
    • Mid-Mount Scarifier, Mounting - 57 kg (125 lb)
    • Moldboard: 4267 × 610 × 22 mm (14 ft × 24 in × 7/8 in)- 100 kg (220 lb)
    • Moldboard: 4267 × 686 × 25 mm (14 ft × 27 in × 1 in) - 257 kg (567 lb)
    • Push plate - 885 kg (1,950 lb)
    • Ripper, mounting - 32 kg (70 lb)
    • Ripper, rear - 962 kg (2,120 lb)
    • Ripper tooth - 28 kg (61 lb)
    • Scarifier, front - 434 kg (956 lb)
  • MACHINE ARRANGEMENTS
    • Snow Arrangement
  • OPTIONAL TIRE ARRANGEMENTS
    • Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.00-24
    • Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.00R24
    • Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25
WhatsApp WhatsApp
